- Marca: ASUS

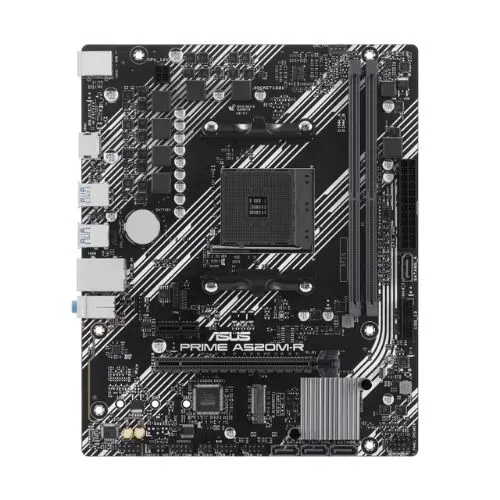

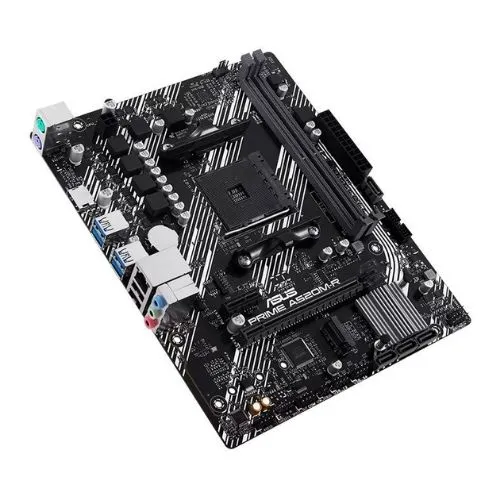

- Modelo:PRIME A520M-R
CPU:
- AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000
G-Series/ 3000 Series/ 3000 G-Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset: AMD A520 Chipset
Memória
- 2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/
4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/
3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/
2800/ 2666/ 2400/ 2133, Un-buffered Memory*
- Dual channel memory
architecture
* ECC memory (ECC mode) support varies by CPU.
* Supported
memory types, data rate (speed), and number of DRAM modules vary depending on
the CPU and memory configuration, for more information please refer to
CPU/Memory Support list under the Support tab of product information site or
visit https://www.asus.com/support/.
Gráficos:
- 1 x HDMI port**
* Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz
as specified in HDMI 2.1.
Slots de Expansão:
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/
3000 Series/ 3000 G-Series Desktop Processors
- 1 x PCIe 3.0 x16 slot
(supports x16 mode)
AMD A520 Chipset
- 1 x PCIe 3.0 x1 slot
- To ensure compatibility of
the device installed, please refer to https://www.asus.com/support/ for the
list of supported peripherals.
Rede: 1 x Realtek 1Gb Ethernet
USB:
Rear USB (Total 6 ports)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2
x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
- 1 x USB 5Gbps header supports 2 additional USB
5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports:
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to
24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
-
Dedicated audio PCB layers
* A chassis with an HD audio module in the front
panel is required to support 7.1 Surround Sound audio output.
Portas I/O no painel Traseiro
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x
USB 2.0 ports (2 x Type-A)
- 1 x HDMI port
- 1 x Realtek 1Gb Ethernet
port
- 3 x Audio jacks
- 1 x PS/2 keyboard (purple) port
- 1 x PS/2
mouse (green) port
Painel Interno:
Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis
Fan header
Power Related
- 1 x 24-pin Main Power connector
- 1 x 4-pin +12V Power
connector
Storage Related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x
USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x
Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x Speaker
header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel
header
Recursos Especiais:
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage
protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution: Aluminum heatsink design
Recursos de Software:
ASUS Exclusive Software
Armoury Crate
AI Suite
3
- Performance And Power Saving Utility
TurboV
EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
- PC
Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40
Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
BIOS EZ Mode
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Gerenciamento: WOL by PME, PXE
Acessórios
Cables: 2 x SATA 6Gb/s cables
Miscellaneous
- 1 x I/O shield
- 1 x M.2 anchor
Documentation: 1 x Quick start guide
Sistema Operacional: Windows® 11,
Windows® 10 64-bit
Formato: micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6
cm x 19.3 cm )
Garantia: 1 ano de garantia contratual junto ao fabricante, já incluídos 3
meses referentes à garantia legal, nos termos do artigo 26, II, do Código de
Defesa do Consumidor.
Peso bruto: 600g.
